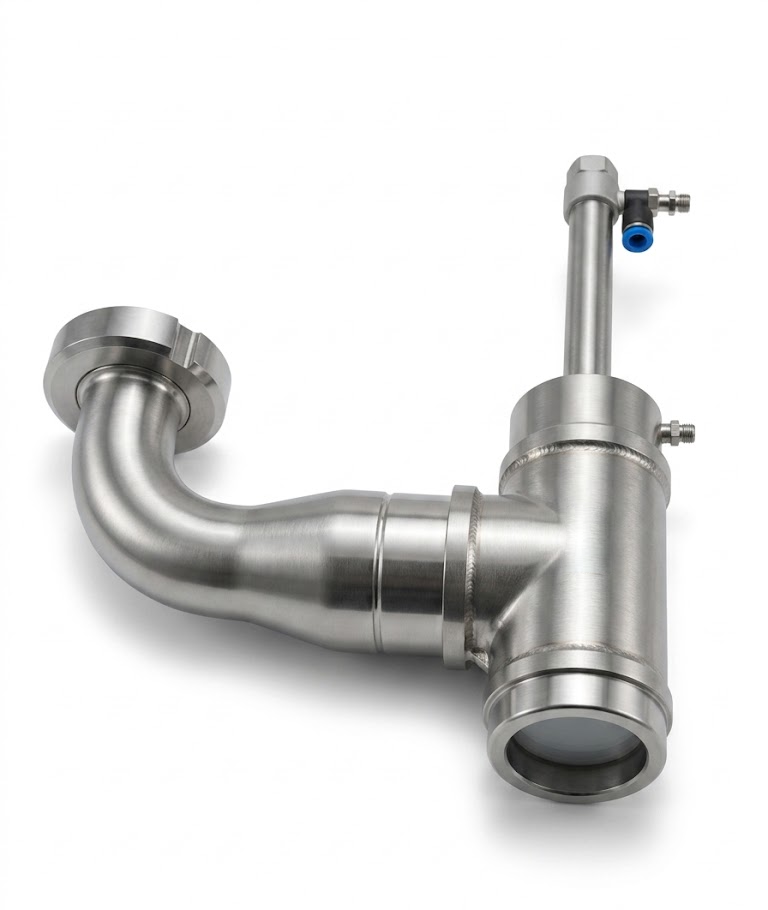

2" Stainless Steel Dense Product Filling Nozzle (Ketchup, Mayonnaise, Sauce Filling Head)

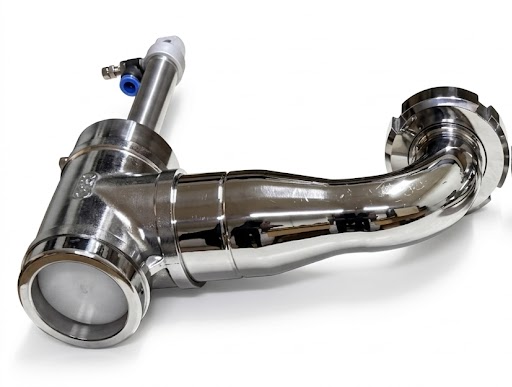

2" Stainless Steel Dense Product Filling Nozzle (Ketchup, Mayonnaise, Sauce Filling Head) - Image 2

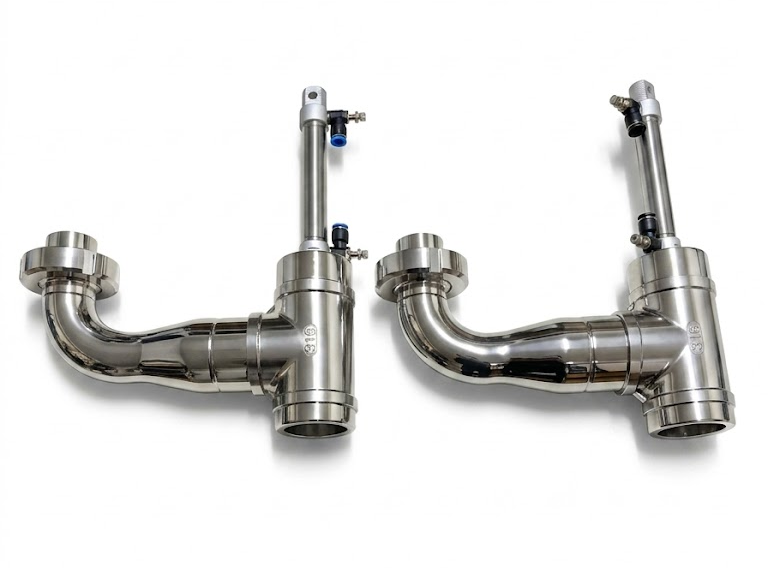

2" Stainless Steel Dense Product Filling Nozzle (Ketchup, Mayonnaise, Sauce Filling Head) - Image 3

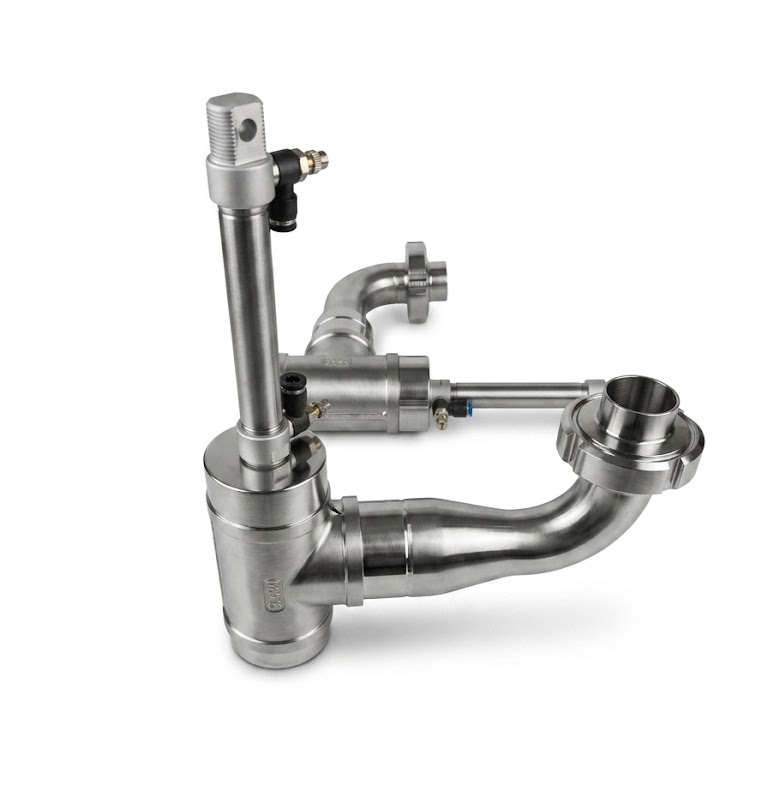

2" Stainless Steel Dense Product Filling Nozzle (Ketchup, Mayonnaise, Sauce Filling Head) - Image 4

2″ Stainless Steel Dense Product Filling Nozzle (Ketchup, Mayonnaise, Sauce Filling Head)

600,00$

Designed for High-Volume Pail and Container Filling!

Delivering exceptional performance in filling high-viscosity (dense) food products such as ketchup, mayonnaise, sauces, and creams, the 2-Inch Stainless Steel Filling Nozzle is built for maximum efficiency.

  • Material: 100% AISI 304 Grade Stainless Steel (Compliant with Food Standards)

  • Connection Size: Optional Various Connection Unions / 2″ (Inch) Heavy-Duty Union Connection

  • Nozzle Size: 2″ (Inch)

  • Application Area: Pails, large containers, and high-capacity batch filling lines

  • Key Feature: Anti-drip pneumatic mechanism integration, precision craftsmanship, and an ultra-smooth internal surface

Summary Table of Specifications

Feature Specification
Material 100% AISI 304 Stainless Steel (Food Grade)
Connection Size 2″ Union Connection (Optional Fitting Types Available)
Nozzle Dimension 2″ (DN50)
Applications Pails, large containers, high-kilogram filling lines
Key Highlights Anti-drip pneumatic mechanism, precision finish, ultra-smooth interior

Available on backorder

  • Check Mark Satisfaction guaranteed
  • Check Mark Hassle-Free Returns
  • Check Mark Secure Payment
GUARANTEED SECURE PAYMENT

Description

Maximum Performance and Hygiene in Industrial Viscous Food Filling

Filling low-fluidity, viscous products—such as ketchup, mayonnaise, mustard, chocolate cream, or industrial sauces—requires specialized engineering solutions. The 2″ Stainless Steel Filling Nozzle is engineered specifically for high-capacity filling lines (pails, large drums, or containers) to ensure a continuous, fast, and clean operation.

Thanks to its wide 2-inch passage diameter, it prevents flow restriction in dense products, avoids product compression, and reduces strain on your filling machine’s pump.

Key Technical Advantages

  • Full Compliance with Food & Hygiene Standards: Manufactured entirely from high-grade stainless steel. Its fully polished surface prevents bacterial accumulation and ensures full compatibility with Clean-in-Place (CIP) cleaning processes.

  • Drip & Leak Prevention: Featuring a pneumatic actuator shaft and air connection fittings, the product flow is shut off in milliseconds the moment the filling cycle finishes. This completely eliminates dripping on container rims and avoids weight variations.

  • Robust & Sustainable Construction: Industrial-grade weld quality and a heavy-duty elbow structure guarantee deformation-free operation for years, even under high-pressure filling conditions.

  • Easy Installation: Equipped with a standard union connection, allowing quick and seamless integration into existing filling lines or new engineering projects within seconds.

Technical Specifications

Feature Specification
Product Type Viscous Product Filling Nozzle
Inlet / Outlet Diameter 2″ (DN50 Compatible)
Surface Finish Fully Polished Stainless Steel
Actuator / Shaft System Pneumatically Controlled Sealing Shaft
Compatible Products Ketchup, mayonnaise, sauces, purees, creams, gels, and other high-viscosity liquids

Why Choose This Filling Nozzle?

If your container filling line suffers from weight variations, post-fill dripping, or difficult cleaning routines, this professional filling nozzle offers the ultimate solution. Its sharp cutoff mechanism ensures clean, zero-waste filling while directly boosting your overall production speed.
