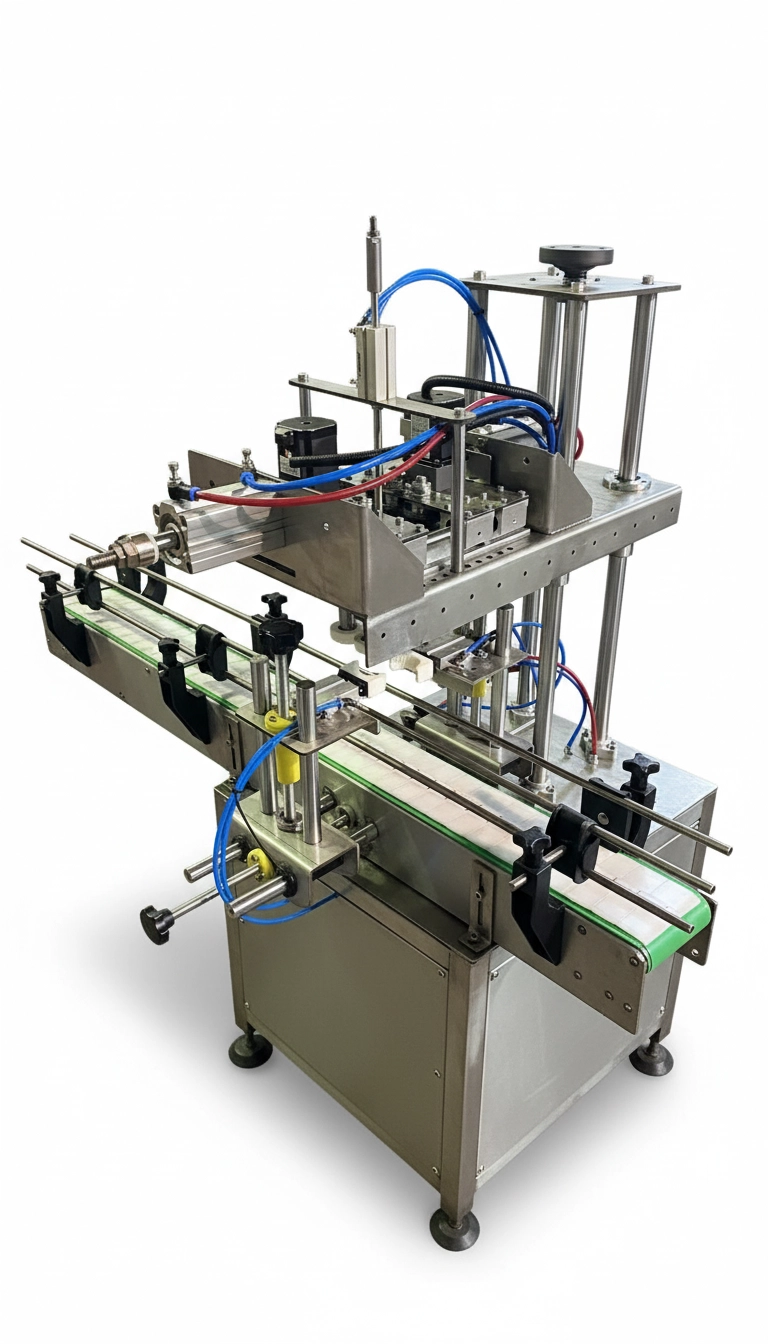

4-Head Capping Machine
12.000,00$

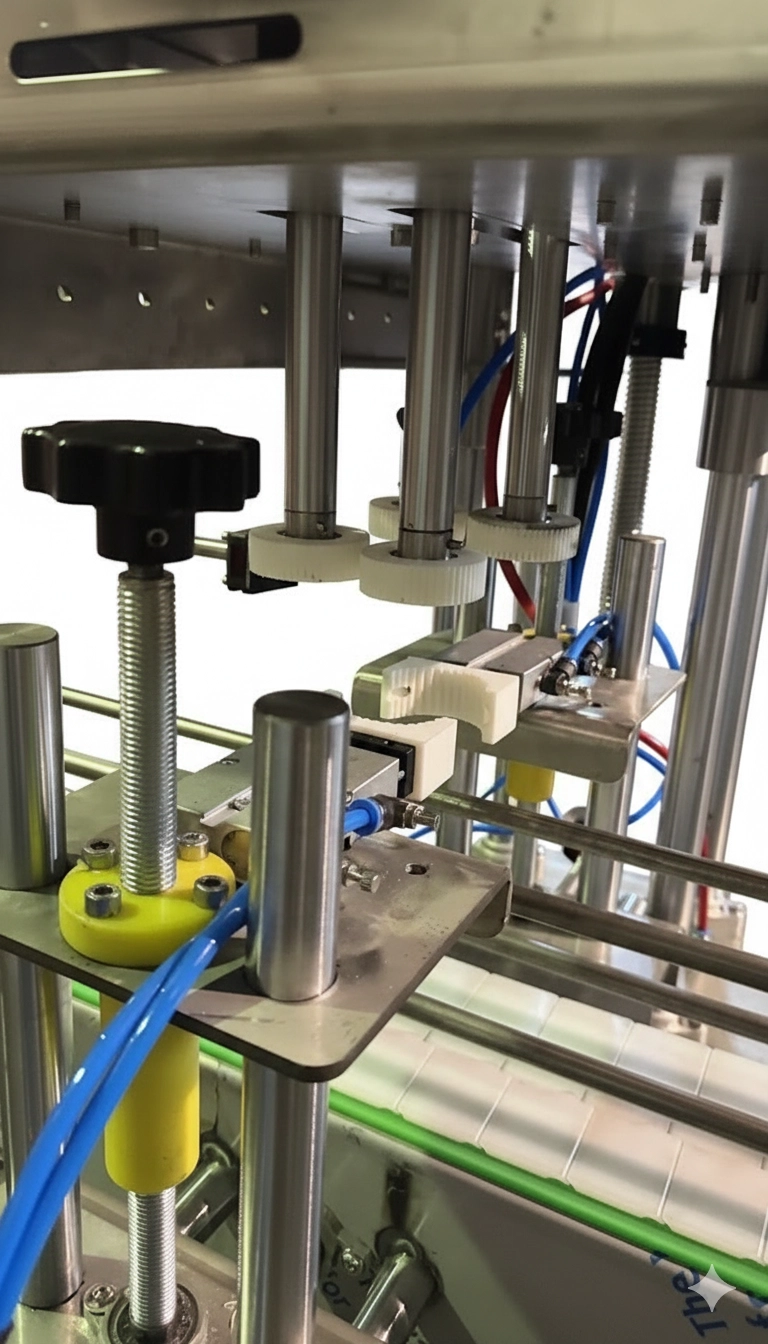

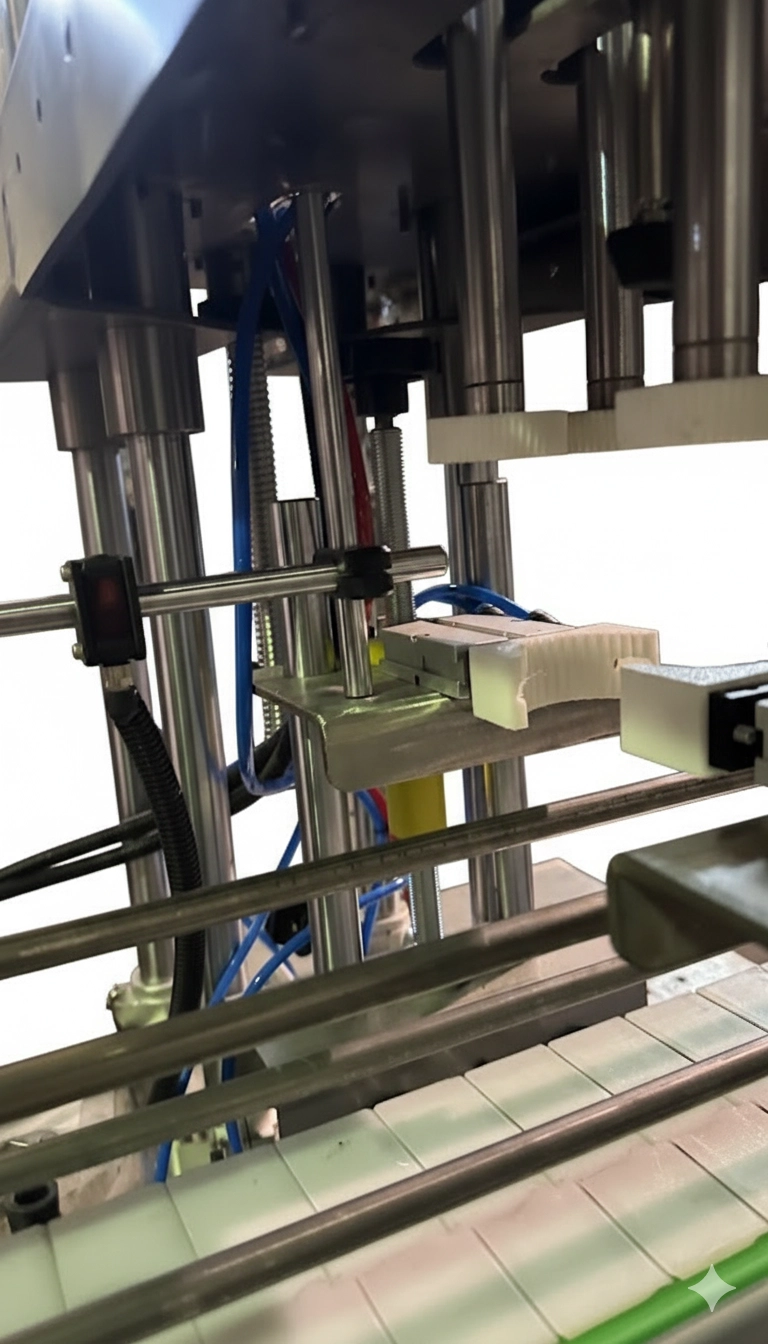

The 4-Head Capping Machine is a fully automatic capping solution designed to securely tighten plastic or metal screw caps onto bottles at a consistent torque value. Thanks to its high-precision torque adjustment system, the machine applies the optimal tightening force for each type of cap, preventing both product leakage and cap deformation.
Specially designed interchangeable gripping molds allow quick adaptation to different bottle and cap sizes. This provides flexible production capabilities while minimizing downtime during changeovers.
Its durable stainless-steel construction ensures long service life and full compliance with hygiene standards in the food and chemical industries. With its compact structure, the machine can be seamlessly integrated into existing filling and packaging lines.
- Satisfaction guaranteed
- Hassle-Free Returns
- Secure Payment
Description
Technical Specifications
-
Model: 4-Head Capping Machine
-
Capping System: 4 rotary capping heads (4-Head Mechanism)
-
Torque Adjustment: Precise, manually or automatically adjustable (suitable for different cap types)
-
Gripping Molds: Easily interchangeable, compatible with various bottle and cap sizes
-
Capacity: 20 – 40 bottles per minute (depending on bottle and cap type)
-
Bottle Diameter Compatibility: 20 mm – 120 mm (custom sizes optional)
-
Cap Diameter Compatibility: 18 mm – 60 mm
-
Frame Material: AISI 304 stainless steel (optional 316L)
-
Control Unit: PLC-controlled, touch screen panel (Delta / Siemens optional)
-
Power Supply: 220V – 50/60 Hz
-
Air Pressure: 6 – 8 bar (for pneumatic capping system)
-
Dimensions: Compact design, can be integrated into production lines
-
Application Areas: Food, cosmetics, chemical, pharmaceutical, cleaning products
