Expflex Dual Pneumatic Air Conditioner Mini Body 16 Bar 1/8

Description

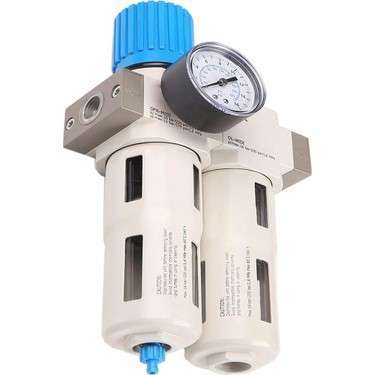

Dual Pneumatic Air Preparation Unit – Mini Body – 16 Bar – 1/8”
Clean Air. Stable Pressure. Reliable Lubrication.

---

🔧 Product Overview:

The Dual Pneumatic Air Preparation Unit (also referred to as an FR unit – Filter & Regulator) is designed to condition compressed air before it enters your pneumatic system. This mini-body version, with a maximum working pressure of 16 bar and 1/8″ port size, is ideal for compact setups and precision equipment.

Although FRY units usually include a lubricator, this two-piece system combines:

1. Air Filter

2. Pressure Regulator

Ensuring your air supply is clean, stable, and dry, this unit helps protect downstream equipment, reduce wear, and optimize performance.

---

⚙️ Technical Specifications:

• Configuration: Dual Unit (Filter + Regulator)

• Port Size: 1/8″ BSP

• Max Operating Pressure: 16 bar

• Body Type: Miniature (compact design)

• Filter Type: Moisture separator with manual drain

• Regulation Range: Typically adjustable between 0.5–10 bar

• Material: Aluminum body with polycarbonate bowls (with protective cover)

• Mounting: Panel or wall-mountable
