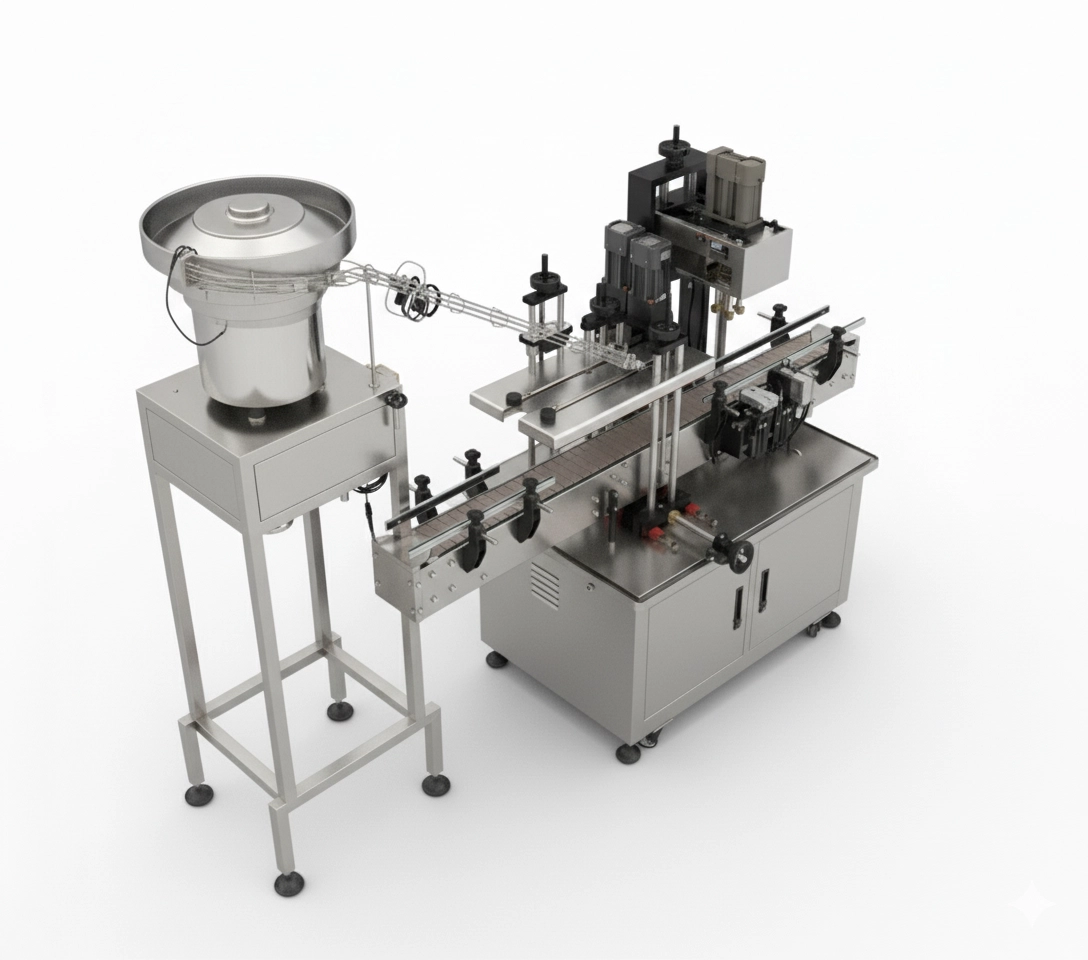

Vibratory Cap Feeder with 4-Head Capping Machine

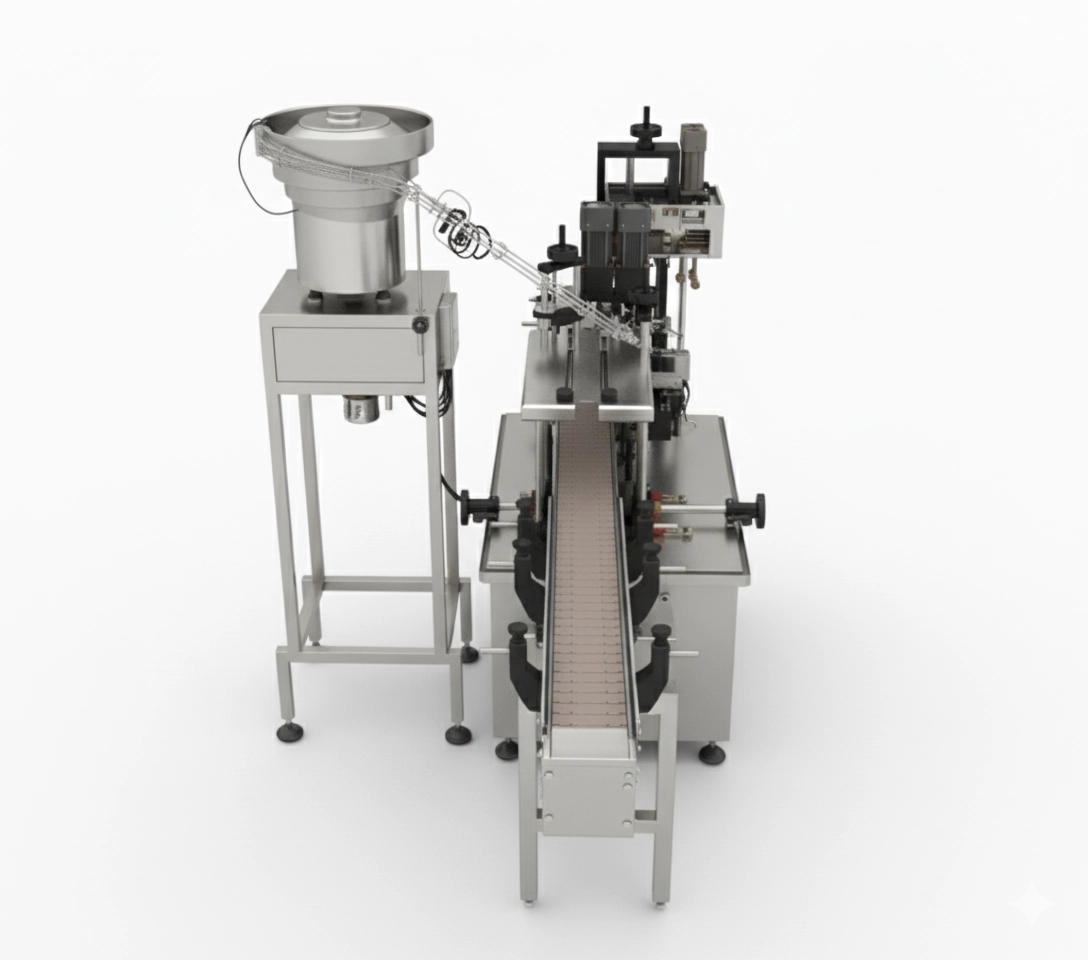

Vibratory Cap Feeder with 4-Head Capping Machine - Image 2

Vibratory Cap Feeder with 4-Head Capping Machine

22.000,00$

The 4-Head Capping Machine with Vibratory Cap Feeder is a high-speed, fully automatic capping solution widely used in the food, cosmetic, cleaning, and chemical industries. As bottles move along the conveyor, the vibratory feeder orients the caps and places them automatically onto the bottles. The bottles then enter the 4-head capping unit, where adjustable torque control ensures consistent, standard-compliant tightening.

This system minimizes human error, enables high-speed production, and guarantees consistent quality on every cap. Its stainless steel body ensures durability and hygiene, while the user-friendly touch screen interface allows operators to control the machine with ease.

  • Check Mark Satisfaction guaranteed
  • Check Mark Hassle-Free Returns
  • Check Mark Secure Payment
GUARANTEED SECURE PAYMENT

Description

Technical Features

  • High speed and efficiency: Capping capacity of 30–120 bottles per minute

  • Precise torque adjustment: Ensures secure and leak-proof results for every cap

  • Automatic cap feeding: Minimizes operator intervention

  • Durable and hygienic structure: Stainless steel body, easy to clean

  • PLC control system: All parameters adjustable via touch screen

Specifications:

  • Capacity: 30 – 120 bottles/minute

  • Cap Diameter: 20 – 110 mm

  • Bottle Height: 50 – 300 mm

  • Capping Unit: 4-head capping system

  • Feeding Unit: Vibratory cap orienting bowl

  • Torque Control: Adjustable, pneumatic or optional servo motor

  • Control Unit: Delta PLC + 7” touch screen

  • Power Supply: 220V / 50Hz

  • Air Requirement: 6 bar clean air

  • Frame Structure: AISI 304 stainless steel
