4-Nozzle Loadcell (Weighing) Liquid Filling Machine
42.000,00$

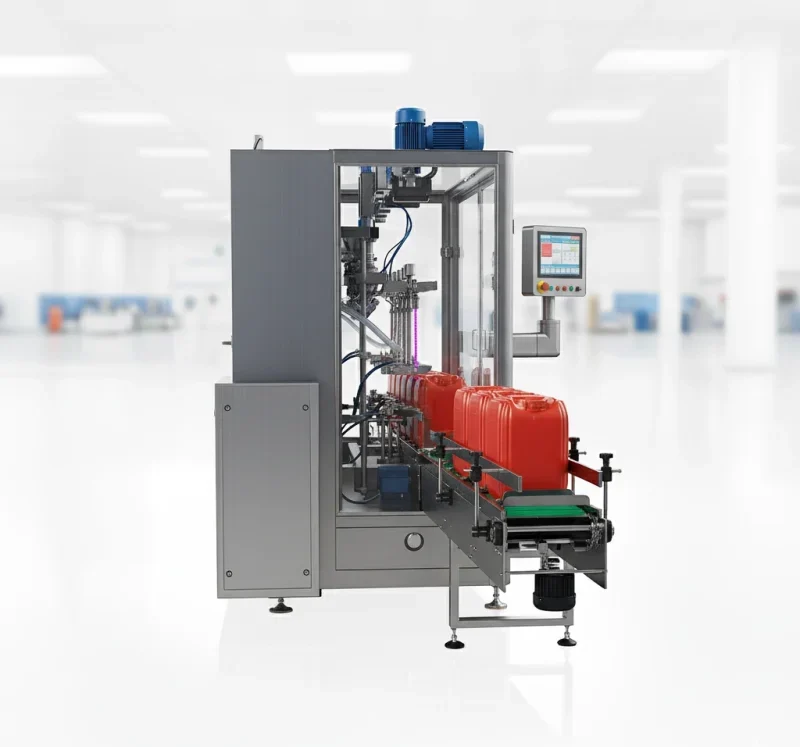

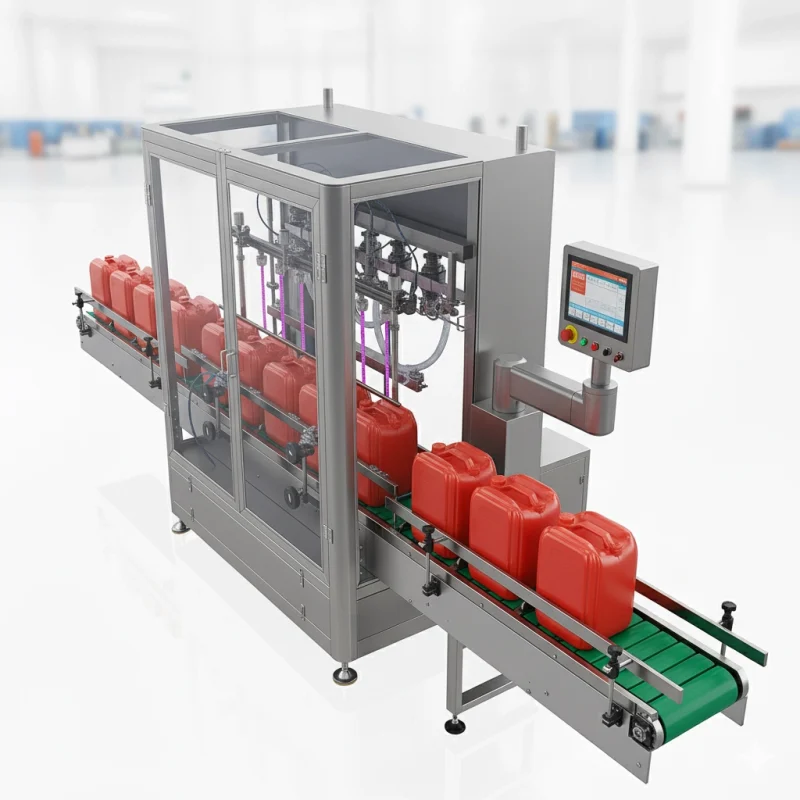

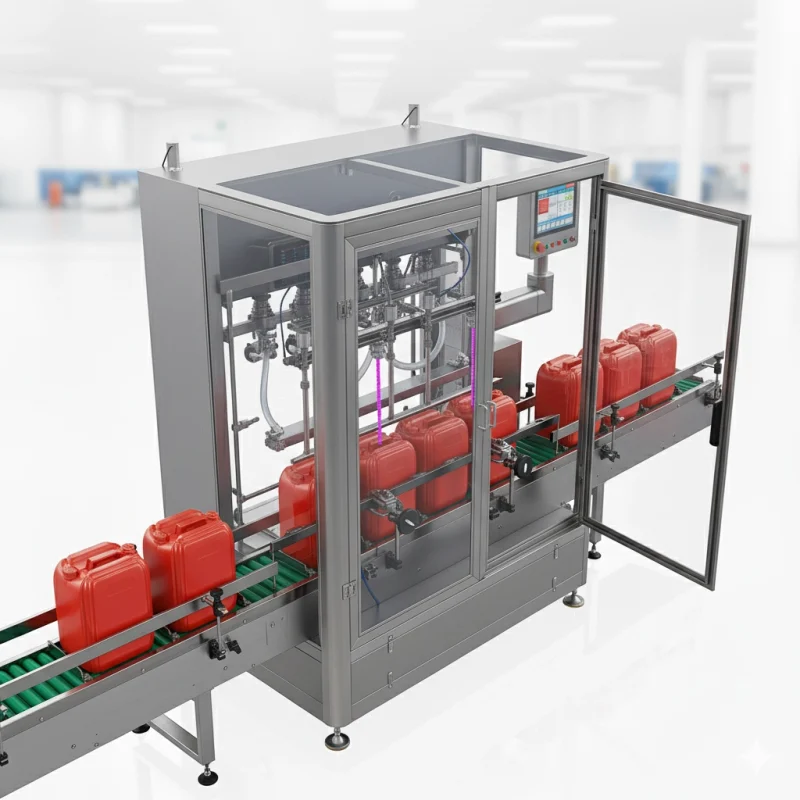

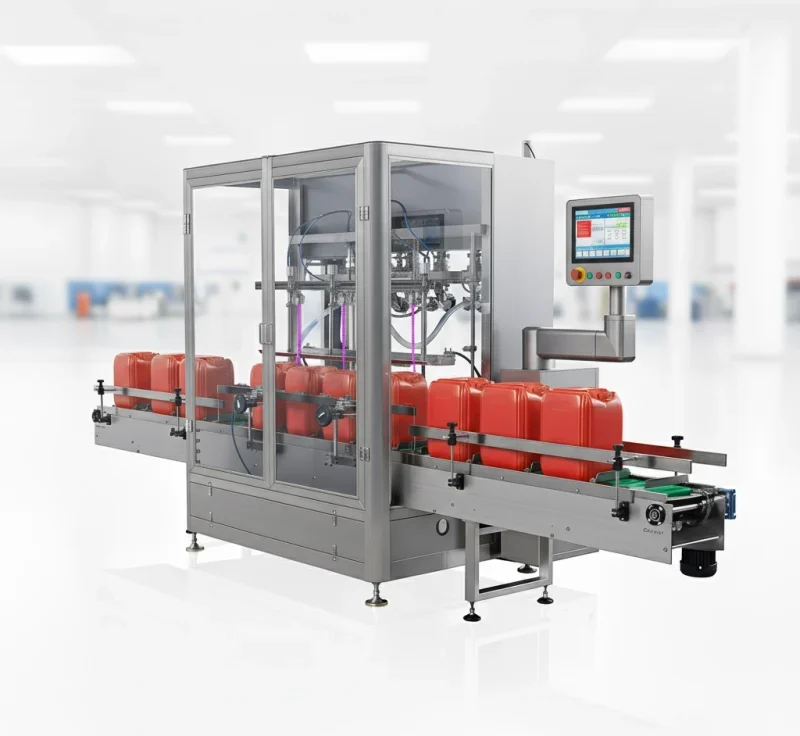

4-Nozzle Load Cell (Gravimetric) Filling Machine
Developed by Saruhan Professional Filling Systems, the 4-Nozzle Load Cell (Gravimetric) Filling Machine is custom-engineered for manufacturers demanding weight-based, high-accuracy filling on their production lines. Operating with independent load cell sensors at each filling station, the system measures the exact weight of every container, bottle, or drum in real time to execute fills with $\pm 0.1\%$ precision.
This machine delivers outstanding performance across a broad viscosity spectrum for liquids used in the chemical, food, cosmetics, cleaning products, and lubricant industries. Fully PLC-controlled, it allows operators to effortlessly adjust all operating parameters—including target weight, speed, and dwell times—via an intuitive touchscreen interface.
Its stainless steel construction guarantees long service life, a hygienic operating environment, and hassle-free cleaning routines. Integrated automatic position-detection sensors ensure containers are perfectly aligned beneath the nozzles before filling begins, maximizing accuracy while preventing overflows and spills.
Distinguished by its energy efficiency, quiet operation, and low maintenance costs, this model brings high throughput, precision, and a professional edge to your facility. For a complete turn-key solution, it can be seamlessly integrated with optional capping, cap-tightening, and labeling modules to form a fully automated end-to-end line.
- Satisfaction guaranteed
- Hassle-Free Returns
- Secure Payment
Description
Technical Specifications
-
Number of Nozzles: 4, 6, or 8 independent load cell-controlled filling nozzles
-
Filling Range: 5 – 30 Liters (suitable for jerricans, bottles, or tin cans)
-
Filling Pump: Custom pump options tailored to your product (Centrifugal, Mono/Progressive Cavity, Diaphragm, etc.)
-
Filling Type: Net weight filling (Load cell – gravimetric control)
-
Filling Accuracy: pm 0.1
-
Capacity: 4–20 containers per minute (varies based on product viscosity and nozzle count)
-
Control Unit: Delta PLC and touch-screen HMI interface
-
Filling Unit Material: AISI 304 Stainless Steel (AISI 316 optional)
-
Conveyor System: AISI 304 Stainless Steel, variable speed motor-driven belt
-
Air Pressure: 6–8 bar
-
Filling Nozzles: Custom anti-foaming and anti-drip design
-
Power Supply: 220V/380V – 50/60 Hz
-
Safety Enclosure: Transparent Plexiglas doors with a stainless steel frame safety cabin
-
Cleanability: Easy cleaning via quick-connect hoses (CIP compatible)
Optional Features
-
Automatic cap pressing and cap tightening module
-
Labeling system integration
-
Post-fill checkweighing unit
-
Inkjet date coding system
-
Container infeed and outfeed accumulation turntables/trays
Applications
-
Chemicals: Acids, solvents, detergents, antifreeze, paints, engine oils, etc.
-
Food & Beverage: Vegetable oils, syrups, sauces, liquid food products
-
Cosmetics & Cleaning: Shampoos, liquid soaps, detergents, surface cleaners
-
Industrial & Lubricants: Mineral oils and industrial lubricants
Advantages
-
Direct weight-based gravimetric filling using load cell technology for maximum accuracy
-
Quick adjustments during product changeovers and effortless cleaning routines
-
Energy-efficient, quiet, and long-lasting industrial engineering
-
User-friendly touchscreen interface
-
High repeatability powered by PLC automation
Additional Information
| Dolum Tipi | Terazili Dolum |
|---|---|
| Kapasite | 2000-25000 ml 25 LT Dolum |
| Konstrüksiyon Malzeme | Paslanmaz Çelik |
