500 Liter Process Tank with Double Mixer, Heating, Scraper and Blender | Loadcell Weighing Process Vessel

8.500,00$

A fully equipped process mixer tank with a 500-liter capacity, specifically designed for the food, cosmetics, chemical, and pharmaceutical industries. It optimizes your production processes by combining heating, precise weighing, and homogenous mixing in a single unit.

Precise Weighing: Direct in-tank weight control with integrated loadcell system.

Excellent Homogenization: Mixing system with Teflon scraper and inverter (speed control).

Complete Temperature Control: Digital, fluctuating temperature management with electric resistance heater (heat meter) and thermocouple.

Plug-and-Play Operation: Integrated ergonomic control panel with IP65 protection.

Material: Food and chemical production-grade AISI 304/316 stainless steel.

Available on backorder

  • Check Mark Satisfaction guaranteed
  • Check Mark Hassle-Free Returns
  • Check Mark Secure Payment
GUARANTEED SECURE PAYMENT

Description

Complete Control in Your Production: 500-Liter Process Tank with Dual Agitator, Heating, Scraper, and Mixer

In industrial manufacturing, speed, precision, and minimal material waste are paramount. Engineered to meet high-level standards, our 500-liter electrically heated process tank with scrapers provides a complete solution to achieve consistent quality and homogeneity across all your batches. Its all-in-one design eliminates the need for external equipment, saving both space and time in your facility.

Key Production Advantages

  • Zero Waste with Integrated Load Cells: Built-in load cell weighing systems on the vessel’s legs allow for precise measurement directly inside the tank. Real-time weight tracking on the digital indicator eliminates recipe errors and product transfer losses.

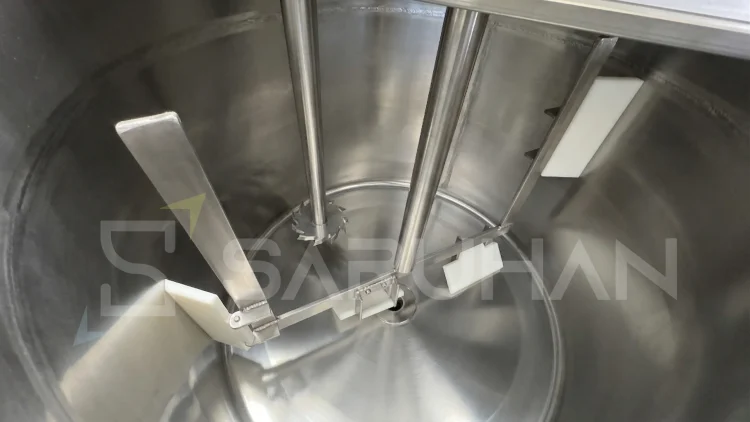

  • Anti-Burn & Anti-Stick Scraper System: Equipped with specially angled Teflon scrapers and an inverter-driven variable-speed mixer motor, preventing high-viscosity products from scorching or sticking to the inner wall. Easily adjust the speed to match your product’s viscosity for uniform mixing.

  • Thermocouple-Guided Electrical Heating: Operates without requiring an external steam boiler. The integrated electrical resistance system and thermocouple sensor ensure precise temperature regulation. Set points remain stable on the digital panel, protecting your product from thermal shock or overheating.

  • Compact Control Panel: Manage weighing, speed adjustments, and heating controls from a single, integrated station. Eliminates cluttered wiring and enables quick, plug-and-play installation.

📌 Technical Specifications

Feature Specification
Capacity 500 Liters
Body Material AISI 304 or AISI 316 Stainless Steel
Heating System Electric Resistance Heating
Temperature Control Thermocouple Sensor with PID Digital Controller
Agitator Type Anchor Mixer with Bottom and Side Scrapers
Speed Control VFD Inverter (Stepless Speed Adjustment)
Weighing System Leg-Integrated Load Cells with Digital Indicator Panel
Discharge Zero-Dead-Leg Bottom Stainless Steel Valve Outlet
Control Panel On-Machine Integrated Panel with Emergency Stop
